Circular Knitic | basic

Details

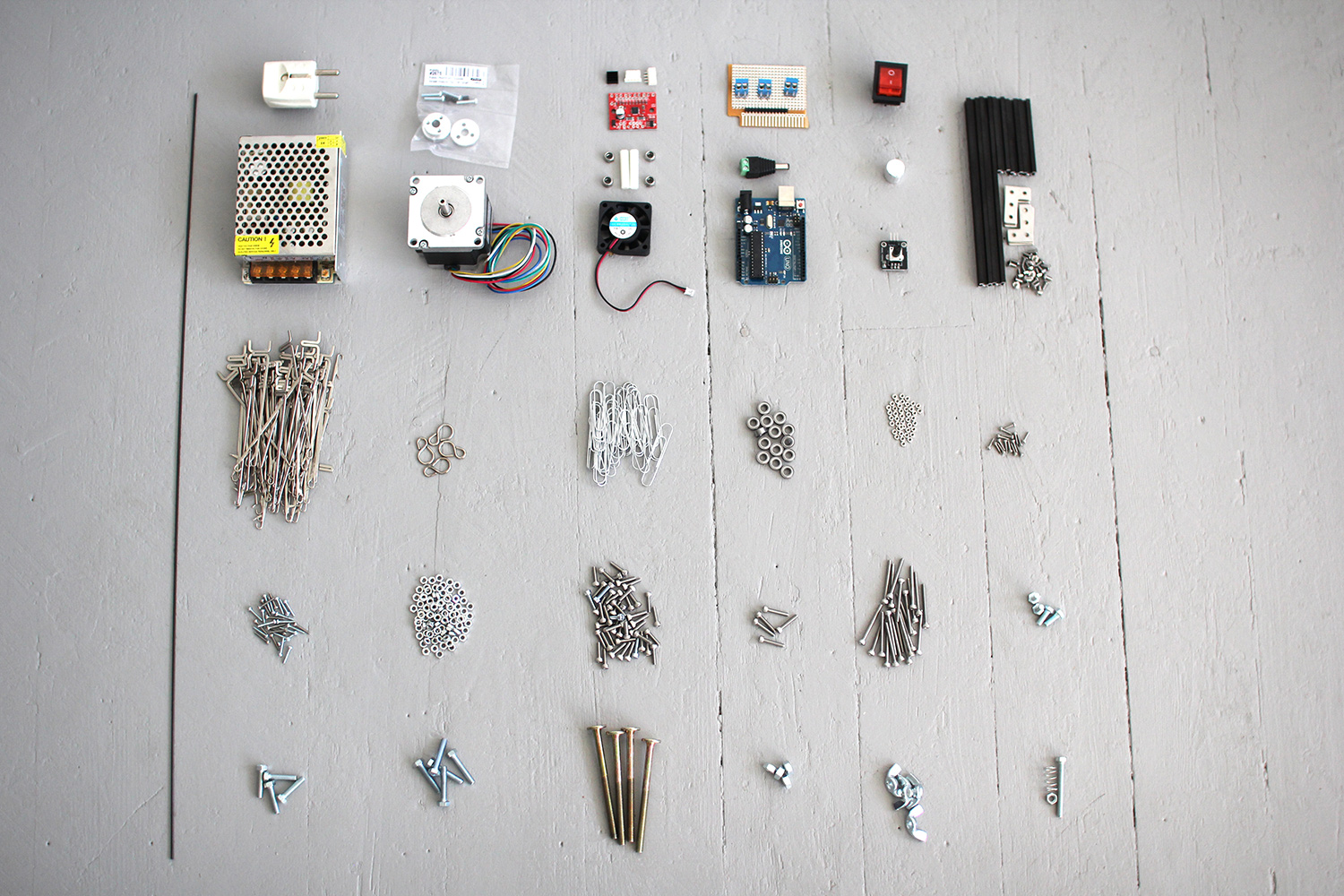

Circular Knitic basic kit consists from hardware components you will need to mount the machine.

The kit contains:
- 16 x M2, 8mm Philips head screw
- 12 x M2, 28mm Philips head screw
- 44 x M2 nut
- 24 x M3, 6mm screws for makerbeam
- 49 x M3, 12mm DIN912 hex screw
- 5 x M3, 16mm DIN912 hex screw
- 22 x M3, 30mm DIN912 hex screw
- 94 x M3, nut
- 16 x M3, washer
- 4 x M5, 16mm screw
- 5 x M5, 25mm screw
- 5 x M5, 25mm screw
- 4 x M5, 20mm screw
- 4 x M5 lock nut
- 4 x M6, 70mm Philips head screw
- 4 x M6, nut
- 4 x M6, wing nut
- 14 x bearings (bore 5mm x 10mm x 4mm)
- 2 x 150mm makerbeam
- 2 x 60mm makerbeam
- 1 x 40mm makerbeam
- 6 x 90degree Lshapes makerbeam
- 60 x XKN8 needles
- 4 x 8-shape
- 4 x claw weights
- 60 x 50mm paper clips
- 1 x spring kit
- 1 x 2mm carbon fiber tensor
- 1 x Arduino Uno
- 1 x BigEasyDriver + cooler
- 1 x Ventilator + 2 x holders + 4 x M3, 16mm screw
- 1 xPotentiometer + cup + 2 x M3, 20mm screw + 6 nuts + header
- 1 x Switch
- 1 x 2-pin terminal x 3
- 1 x Stepper motor + shaft
- 1 x Power supply + electricity plug

235€
